Led Strip Light Introduction

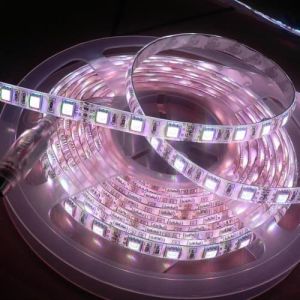

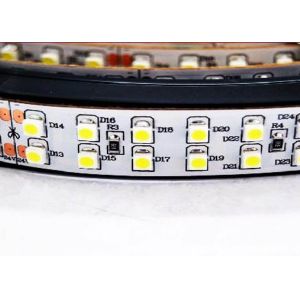

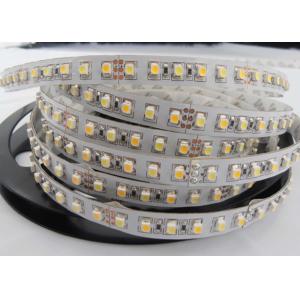

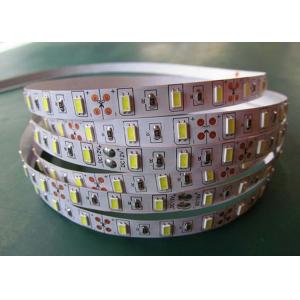

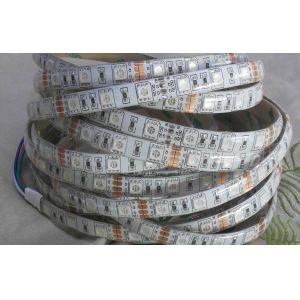

An LED strip light – alternatively called an LED tape or ribbon light – is a flexible circuit board fitted with surface-mounted light-emitting diodes
(SMD LEDs) and other components, typically featuring an adhesive backing.
Historically, such strip lights were exclusively used in applications like accent lighting, backlighting, task lighting, and decorative lighting. However,
advancements in luminous efficacy and the development of higher-power SMDs have significantly expanded their use cases. Nowadays, LED
strip lights can be employed for high-brightness task lighting, as replacements for fluorescent and halogen light fixtures, and in indirect lighting
setups. They also find applications in ultraviolet inspection during manufacturing, stage and costume design, and even as a light source for plant
growth.
LED Strip Lights Installation Steps
Test the Strip First: Connect the LED strip to the power supply (and controller, if applicable) temporarily to check if all LEDs light up properly. This helps identify defects before permanent installation.
Apply the Strip: Peel off the protective layer from the adhesive backing and press the strip firmly onto the prepared surface. For uneven or outdoor surfaces, use additional clips or mounting brackets for extra security.
Secure Connections: If extending the strip or connecting to a power supply, use compatible connectors (avoid soldering unless you have experience). Ensure connections are tight to prevent loose contacts or short circuits.
Avoid Overlapping: Do not overlap sections of the strip, as this can trap heat and reduce lifespan or cause overheating.
LED Strip Light Features
•Flexibility: The thin, bendable design allows them to fit into tight spaces, curves, or irregular surfaces, such as around furniture edges or along ceilings.
• Energy Efficiency: Consume significantly less power than traditional incandescent or fluorescent lights, reducing electricity costs.
• Long Lifespan: Typically last 30,000+ hours, far outlasting conventional bulbs and minimizing replacement needs.
• Dimmable & Controllable: Many models work with dimmers or smart controllers (via apps or voice commands), enabling brightness adjustments and color customization.
• Low Heat Emission: Operate at low temperatures, making them safe for use near fabrics, plastics, or children.
Led Strip Light Specification
| Brand Name | Miracle Bean |
| Place of Origin | Guangdong,China |
| Model Number | XH-led strip light |
| Item Type | LED Strip Light |
| IP Rating | IP65 |
| Size | 10M/Roll |
| Color | RGB |
| Lighting Angle | 160° |
| Operating Voltage | DC24V |
| Lifespan | 30000H |
| Application | Advertising,Lanscape,Building |
Our Services
1. Replied in 24hrs
2. Answer all your enquires in fluent English
3. OEM & ODM are welcome
4. Distributoership are offered for your unique design and some our current models;
5. Protection of your sales area, ideas of design and all your private informaton
6. Provide lifelong warranty
7. After you buy this product, we will provide you with attentive after-sales service. Our engineers will carefully guide the installation and usage for you. That will includes connection of the controller and the light, and also the control software.
Our Advantanges
1. We have more than 20 years’ experience, speciallized in waterproof led drivers.
2. We have more than 50 foreign customers Who have kept purchasing from our company more than 3 years.
3. Compared to our factories,same price,we have the better quality;same quality,we have the cheaper price.
4. Small MOQ, help you to cooperate with our company step by step.
5. Short delivery time, 2 years’ warranty.
6. Solving the problems for customers directly.
LED Strip Lights Production Show
